Lage Manufacturing

MAX-11S mk2 Pistol Upper Receiver

MAX-11S mk2 Pistol Upper Receiver #432

$525.00

Side cocking upper receiver for the M-11/9 Semi-Auto Pistol. Features a full length accessory rail on top and bottom. Made from 6061 aluminum and finished in black, hard coat anodize. 8-3/8" barrel threaded 1/2-28 at the muzzle with flash hider installed. Cocking piece is non-reciprocating. Does not include a bolt assembly.

Barrel Upgrades-

The MAX-11S mk2 comes standard with a 1/2-28 barrel thread and a flash hider installed. The optional 3/4-10 thread is the original OEM thread of the M-11/9 SMG, for use with the standard M-11/9 suppressor. Select one of these options for a different barrel thread. Only select one.

3/4-10 Barrel Uprade +$20.00

3-lug Barrel Upgrade +$104.00


-->

Resources

Manual

  • Description:
    These upper receivers are designed for use with M-11/9, 9mm semi-auto pistols. M-11/9 pistols were originally designed and manufactured by S.W.D. but have also been manufactured by Leinad, and more recently by Master Piece Arms (MPA). The S.W.D. guns are stamped with a "COBRAY" logo and are commonly referred to as being manufactured by Cobray. All of these manufacturers have also made carbine variants. Master Piece Arms makes many models of the M-11/9 including a shortened version (930 series). These upper receivers will only fit the full size M-11/9. They are only offered in 9mm caliber. Our Uppers will NOT work on the most recent MPA lowers that have a curved back or a glock magwell. The MAX-11S upper receiver was originally designed for the M-11/9 semi-auto pistol. It is also compatible with a full auto bolt and can be used with a registered receiver M-11/9 SMG. Features include a 12-1/2" long accessory rail on top and 3" long rail on the bottom. Hard mount points for additional rails on right and left side. The MAX-11S attaches to the stock M-11/9 lower receiver without any modification to the lower receiver and uses your existing retaining pin. Easy to convert- Remove pistol upper from lower receiver. Remove bolt assembly from your upper and slide it into MAX-11S upper receiver. Install upper into lower receiver and replace retaining pin. The picture above shows a MAX-11S with additional Lage Mfg. accessories that are not included with the MAX-11S upper receiver. Lower receiver is not included.
  • Features:

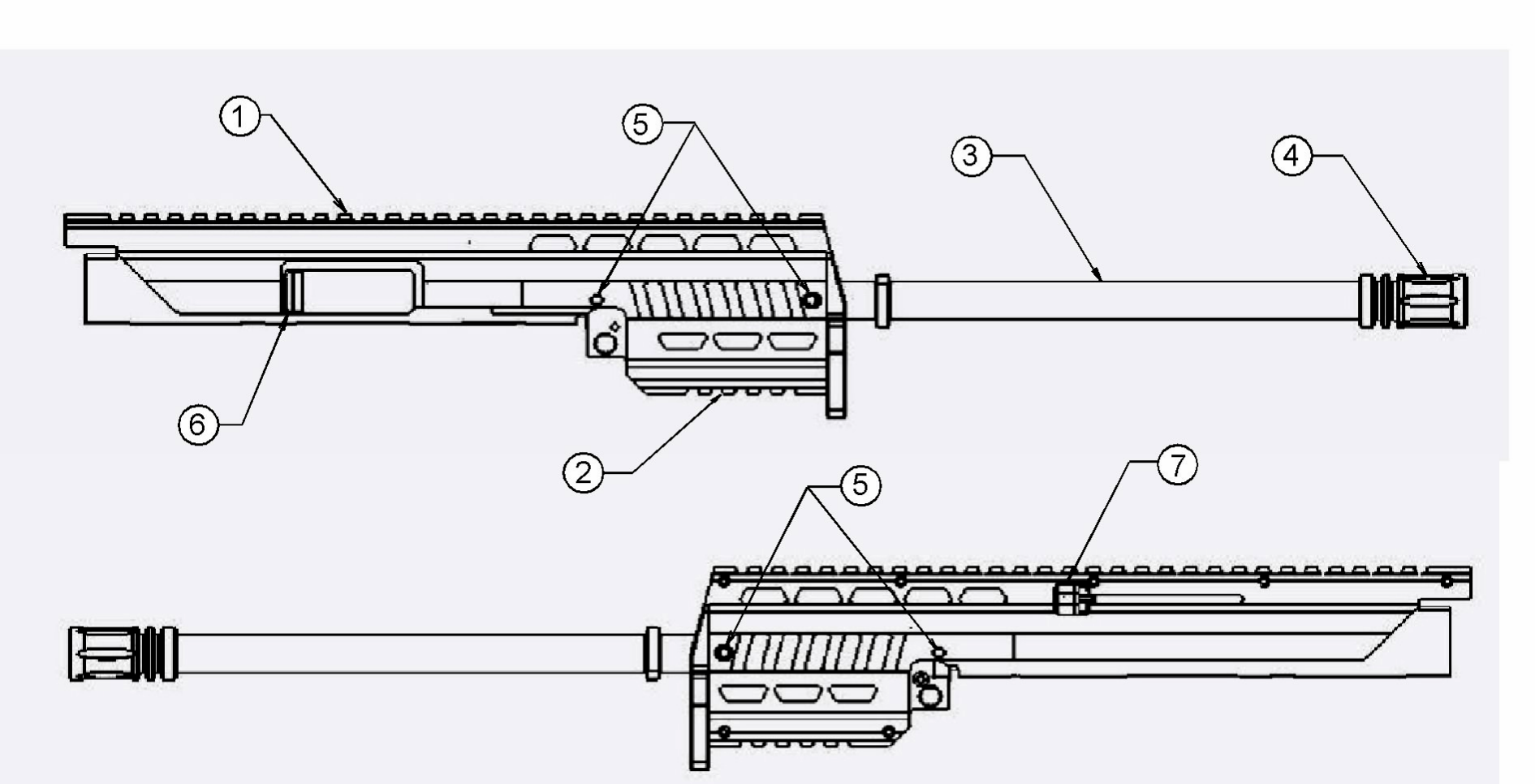

    Upper Receiver

    1) Top Rail 12-1/2" 2) Bottom Rail 3" 3) 8-3/8" 9mm Barrel4) Flash Hider
    5) Side Accessory Rail Mounting Points 6) Shell Deflector7) Side Cocking Handle (non-reciprocating)



    Drawing shown above with 16" barrel is for reference. MAX-11S mk2 has an 8-3/8" barrel.
    • Designed for use with a M-11/9 semi-auto pistol.
    • Compatible with full auto bolts for use with an M-11/9 SMG.
    • Requires no modification of the lower receiver to install upper.
    • Uses existing bolt assembly from your M-11/9 pistol.
    • 8-3/8" barrel threaded 1/2-28 at muzzle with "Birdcage" flash suppressor. Mock Suppressor available as an upgrade.
    • 12-1/2" long accessory rail along top for mounting a scope or removable sights.
    • 3" long accessory rail along bottom for grip, laser, light or other accessory.
    • Handstop in front of bottom rail to provide positive indexing and a repeatable grip.
    • Mounting points on left and right side of foregrip for mounting additional rails.
    • Side cocking, non-reciprocating charging handle on left side.
    • Steel shell deflector.
    • Upper receiver is manufactured from 6061 Aluminum and finished in hard coat black anodize.
    • Barrel is made from chrome moly steel and finished in black oxide, rifle twist is 1:16.
  • Specifications:
    • Overall dimensions of MAX-11S pistol upper receiver:
      • Length: 14-1/8"
      • Width: 1-3/8" to handguard, 2" to cocking knob.
      • Height: 2-1/2" (2-3/8" to bottom of handstop)
      • Weight: 1 pounds 14 ounces.

    • Overall dimensions of the MAX-11S when assembled to an M-11/9 semi-auto lower receiver with a 8-1/2" stock:
      • Overall length- 23-1/2"
      • Width: 1-3/8" to handguard, 2" to cocking knob.
      • Height: 6-1/4"
      • Weight unloaded is 4 pounds, 13 ounces.
      • Weight with a loaded 30 round magazine is 5 pounds, 14 ounces.

      Please note, if you have any functional problems with your semi-auto M-11/9, please have it repaired by a qualified Gunsmith prior to installing the MAX-11S upper receiver. Installation of the MAX-11S will not resolve any pre-existing problems with your gun.


    Use of steel cased, reloaded/re-manufactured ammo will void the warranty.
