MAX-10/15 Upper Receiver with Internal Recoil Mechanism

This upper receiver converts your full auto M-10/45 or M-10/9 into a rifle caliber machinegun. It is chambered in 5.56 x 45mm but it is also compatible with .223 Remington ammunition.

Rate of fire is between 790 and 950 RPM, depending on ammunition used and the gas setting of the Odin Works adjustable gas block.

Full length Picatinny rail on the top is the same height as an AR-15 flat top upper so standard AR foregrips with a rail on top are compatible.

The upper features a side charging, non-reciprocating, spring return charging handle on the left side.

A plastic shell deflector is fitted to provide comfortable shooting when operating left handed. Being plastic, it also minimizes deformation of the ejected brass.

A Troy Ambidextrous Magazine Release is provided to allow easy mag ' changes with your left hand.

Barrel mounting is AR compatible so different AR barrels and handguard mounts can be used, including the original AR delta ring and barrel nut.

Our patented Internal Recoil Mechanism allows installation of the Upper Receiver without modification to the lower receiver. It does not include an AR Stock Assembly, as it does not require it for operation. The MAX-10/15 IRM Upper can use any stock that will attach to the M-10 Lower Receiver. If you desire the AR Stock Assembly, it can be purchase seperately.

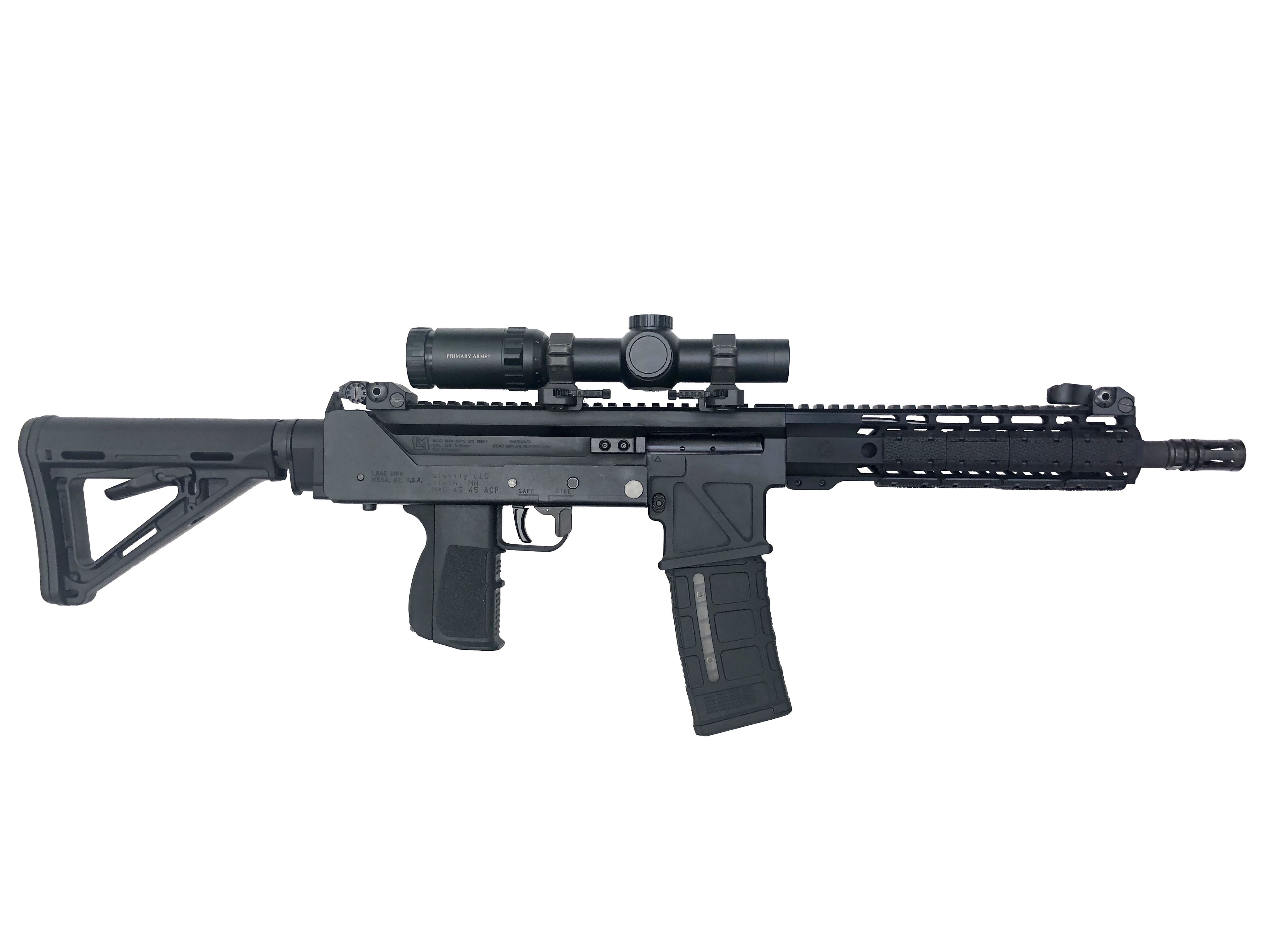

The photo above shows a MAX-10/15 with additional Lage Mfg. accessories that are not included with the MAX-10/15 upper receiver. Registered lower receiver and magazine are not included.

U.S. Patent 10,794,647 B2

Upper Receiver

Made from 7075 aluminum and finished in Black Anodize. 20" long Picatinny compatible rail along top for mounting a scope or removable sights. Rail height is compatible with aftermarket AR Foregrips.

Charging Handle

Side cocking, non-reciprocating, spring return charging handle located on left side.

Shell Deflector

Deflects shells away from the shooter, especially helpful for left handed shooters. Being plastic, it also minimizes deformation of the ejected brass.

Magazine Release

The magazine release is a Troy Industries ambidextrous release. This makes magazine release with the left hand easier by just grabbing the magazine and using your thumb to swipe the magazine release lever on the left side of the gun. A standard magazine release button is located on the right side.

Rear gas seal

The upper is fitted with a rubber gas seal at the top rear to prevent smoke and debris from being directed towards your face when firing with a sound suppressor.

Piston Compatible

The upper is designed to be compatible with Adams Arms Piston kits, and possibly others. The upper receiver will accept the pressed in steel bushing.

Bolt Carrier Group

The bolt head is manufactured from Carpenter 158 Steel and is Magnetic Particle Inspected (MPI). The finish is black nitride.

Barrel

Barrel is 10-1/2" long with a phosphate finish and chambered for 5.56 x 45mm ammunition. It is also compatible with .223 Remington ammunition. Rifling twist is 1:7 Threaded 1/2-28 at muzzle end with jam nut and M16A1 style "Birdcage" flash suppressor attached.

Adjustable Gas Block

An Odin Works adjustable gas block is installed on the barrel. This allows the gas system to be tuned to your specific ammunution to allow softer recoil and a lower rate of fire.

Handguard

Handguard is aluminum and features M-LOK mounting points and a steel barrel nut for durability. With extensive use, the handguard can get uncomfotably hot. We recommend you install M-LOK Rail Covers to insulate your hand from hand guard.

Flash Hider

The flash hider is an M16-A1 style with slots around its full diameter. It is installed with a crush washer to protect the barrel shoulder and allow a non-marred surface to attach a sound suppressor. The barrel muzzle is threaded 1/2-28.

• Length: 23-1/2"
• Width: 3" to cocking knob.
• Height: 4-1/2"
• Weight: 5 lbs, 3.6 oz.

• Overall length (stock extended)- 34"
• Overall length (stock folded)- 25-1/8"
• Width: 3" to cocking knob.
• Height: 4-1/2"
• Weight unloaded is 8 lbs, 5.8 oz.
• Weight with a loaded 30 round magazine is 9 lbs, 7 oz.

Barrel length is 10-1/2".

Rate of fire: approximately 790 to 950 RPM
