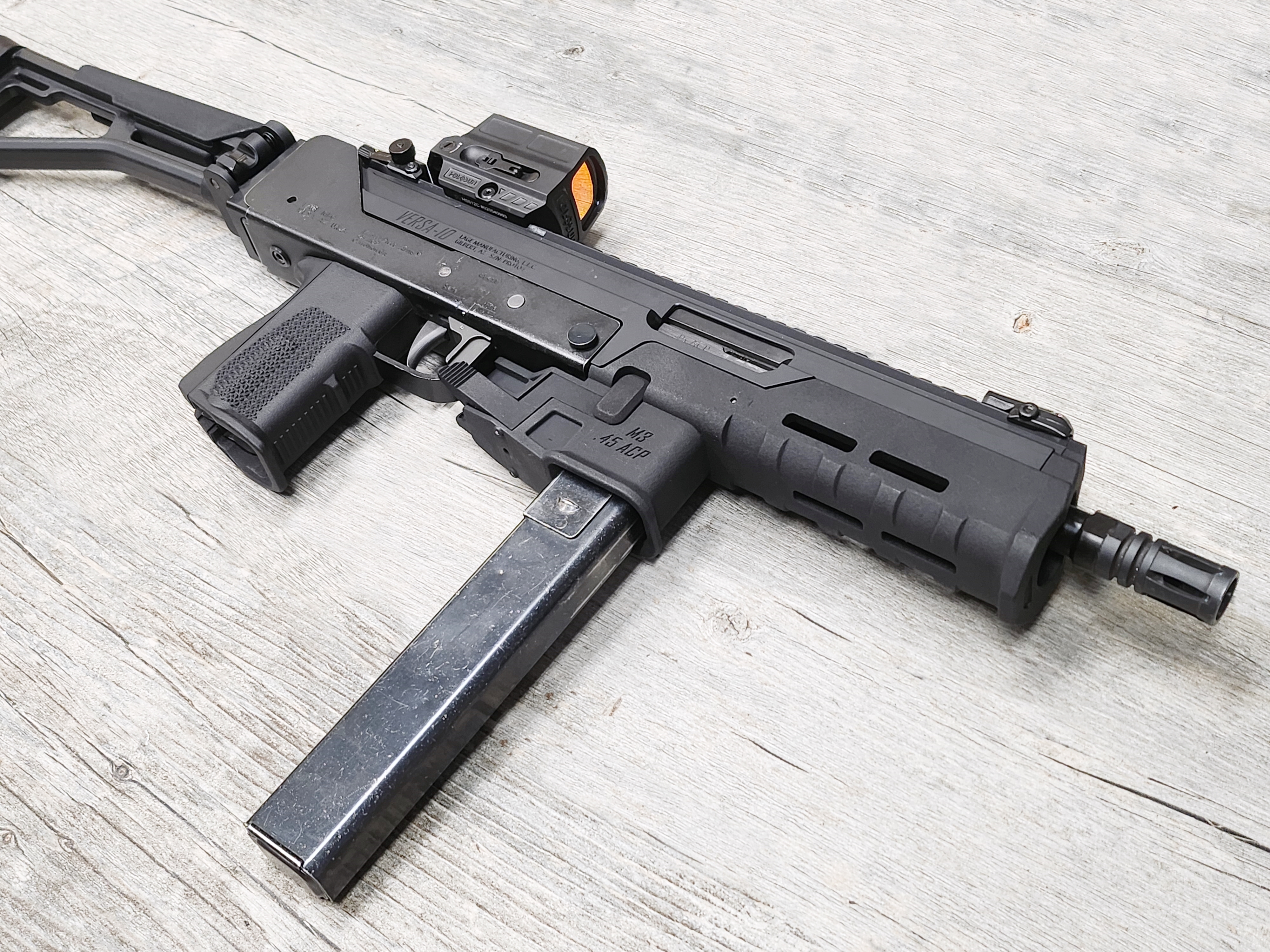

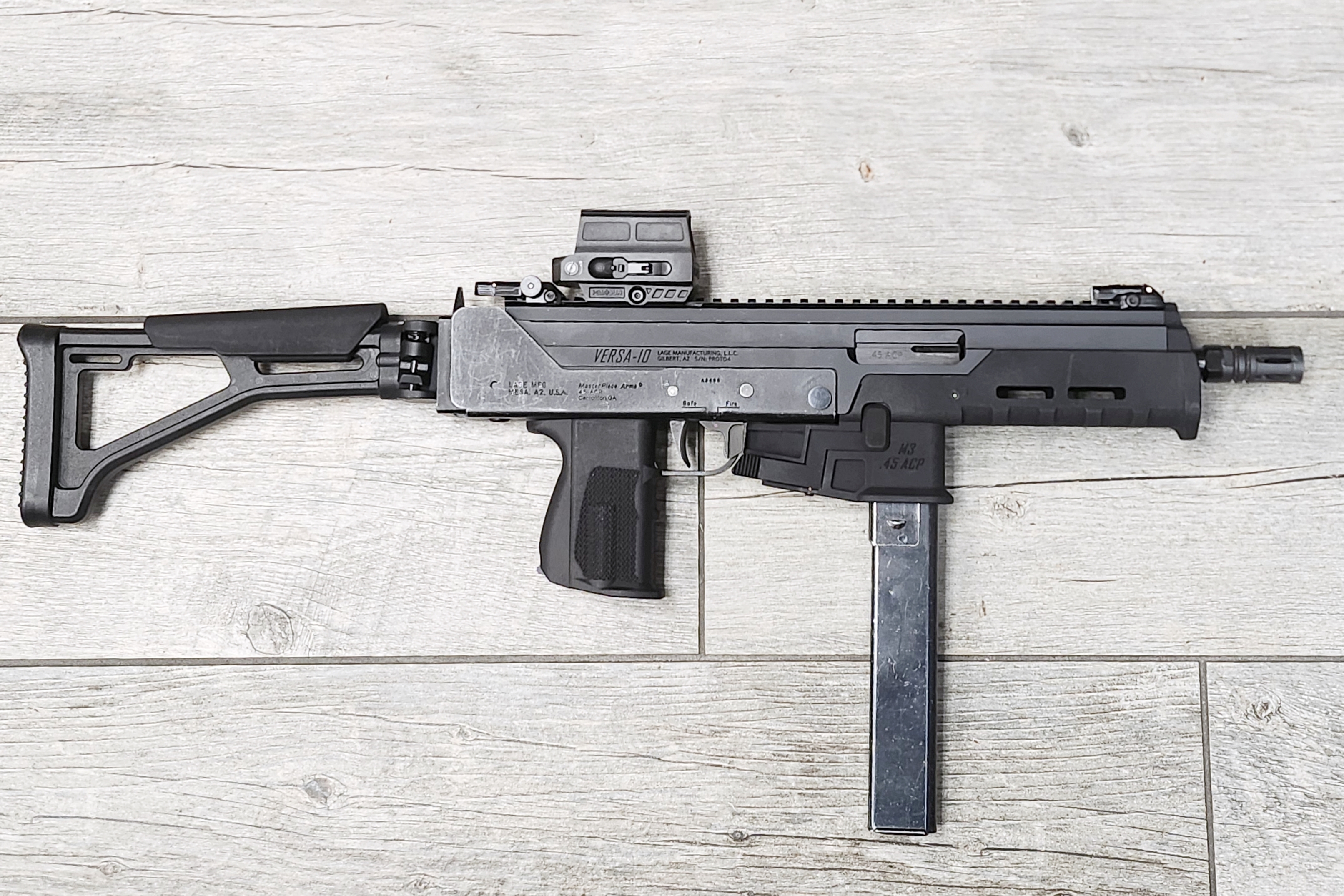

VERSA-10 .45 ACP Upper Receiver

The VERSA-10 can be provided with either a 9mm or .45ACP bolt assembly and barrel installed.

The VERSA-10 in 9mm features a bolt for use with both single feed and double feed magazines and a modular Magazine Adapter to allow use of different magazines.

For 9mm, the Suomi Drum Magazine Module can use Suomi M31 72 round drum, 50 round coffin 36 round double feed stick, Shockwave ZMAG-S and DC-31 magazines. Other Magazine Modules allows use of Glock G17 magazines or other magazines.

The VERSA-10 in .45ACP features a bolt for use with both single feed and double feed magazines and a modular Magazine Adapter to allow use of different magazines.

For .45ACP, Glock G21 magazines, M3 Grease Gun Magazines or other magazines can be used.

The VERSA-10 does not include removeable sights, scope or optics.

The VERSA-10 attaches to the stock M-10/9 or M-10/45 lower receiver without any modification to the lower receiver.

Upper Receiver

• Designed for use with a M-10/9 or M-10/45 submachinegun lower receiver.
• Requires no modification of the lower receiver to install upper.
• 14.81" accessory rail along top for mounting a scope or removeable iron sights.
• Side cocking, non-reciprocating, spring return charging handle on left side.
• 6.20" barrel threaded 1/2-28 (9mm) or 5/8-24 (.45ACP) at muzzle with "Birdcage" flash suppressor.
• Ambidextrous Magazine Release
• M-LOK Slots on Right and Left Sides and Bottom
• Hand Stop

• Overall dimensions of VERSA-10 upper recevier:
  • Length: 18.07"
  • Overall length with "k" Folding Stock- 28.52"
  • Width: 2.40" across cocking knob
  • Height: 5.30" (to bottom of G17 Magazaine Module)
  • Weight: 3.88 pounds

• 9mm Rate of fire:
  • CCI Blazer Brass 115 Gr. FMJ- approximately 561 RPM
    Optional Rates of Fire with Variable Buffer System (VBS):
    One VBS Spacer installed- 561 RPM
    Two VBS Spacers installed- 587 RPM
  • .45ACP Rate of fire:
    • Armscor 230 Gr. FMJ- approximately 484 RPM
      Optional Rates of Fire with Variable Buffer System (VBS):
      One VBS Spacer installed- 600 RPM
    • Different bullet weights, as well as lighter or stronger
      powered ammunition, will result in slower or faster rates of fire. The rates of fire
      above are approximate. The rate of fire of your ammunition may vary.

  Use of reloaded/re-manufactured ammo will void the warranty.
